Right Click Operations

All of the functions available in the Endpoint List ribbon group are also available by right-clicking on an endpoint or tag. These functions allow the creation, editing and management of endpoints and tags, the ability to execute or cancel a search, the ability to gather diagnostic data and the ability to apply or reapply a policy to an endpoint or tag.

In this article

Tag Menu

The Tag right-click menu allows you to create new top level or nested tags, edit,update or remove existing tags, and move a nested tag to the root of the Endpoint List. A tag is a grouping used to organize endpoints for reporting, policy management, and Roles Based Access Control. Tags and endpoints can be automatically imported from Active Directory, LDAP, or an IP address range. An endpoint can exist in any number of tags.

You can assign one endpoint per tag or conveniently group multiple endpoints under a single tag. Grouping multiple endpoints under a single tag can be useful when you want to perform the same operations on multiple endpoints because you'll only have to perform it one time on the tag instead of individually for each endpoint. For example, if you have 10 endpoints in your finance department and want to apply the same policy to all 10 endpoints, creating a Finance tag will allow you to apply the policy to a single location - the tag - rather than to all 10 individual endpoints.

A listing of operations that can be performed on a tag that will in turn perform those operations on all of the endpoints in that tag include:

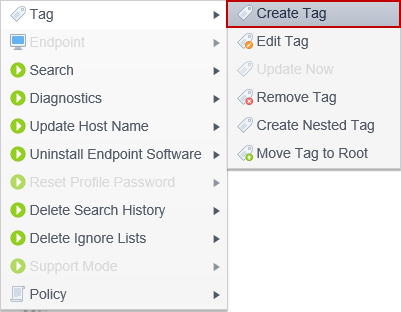

Create Tag

Create TagThe Create Tag dialog allows you to create new tags to organize your endpoints. Each tag has a type that controls the method for how endpoints are added to and removed from the tag. Endpoints can be manually added to simple tags, automatically and dynamically populated with endpoints from an IP Range or an Active Directory/LDAP query, or be added to or restricted from Filter tags by defining specific criteria.

Endpoints are manually added to a Simple tag via drag and drop, the right-click menu or via the Endpoint ribbon button. Simple tags are grouped under the Simple tags panel.

Endpoints are automatically added to an IP Range tag using the IP addresses reported by the endpoints to the Console. As new endpoints report to the Console with an IP address in the specified range, they will be automatically added to the tag. The query for the IP Range can be specified in an IP range format (e.g., 192.168.100.0-192.168.250.250) or a CIDR notation format (e.g. 10.0.0.0/8). IP range tags cannot contain nested tags.

An endpoint must report at least one IP address to be included in an IP Range tag. Typically, unmanaged endpoints (e.g., those that have been searched remotely) will not report an IP address. IP range tags are grouped under the Dynamic Tags panel.

Endpoints are automatically added to an Active Directory or LDAP tag based on the results of the specified query. As systems are added or removed from the directory, the tag will be automatically updated to add or remove endpoints. The query for the Active Directory or LDAP tag can be any valid LDAP query. Any LDAP object returned where "objectClass=computer" will be automatically added to the tag. Active Directory / LDAP tags are grouped under the Dynamic Tags panel.

When an endpoint is in an AD tag and that system is removed from the AD or it is in an IP Address tag and its IP address is changed to no longer match the tag specifications, it will be automatically removed from the tag. The endpoint will continue to exist in the All Endpoints tag.

The following types of filters are available:

Note: If you have a filter tag which is defined as "Client Platform Equals Win+anything" or "Client Platform Equals Mac+anything" (e.g. "Client Platform Equals Win32" or Client Platform Equals MacIntel") in version 8 of the Console, when you upgrade to Console version 9, the filter will change to ““Client Platform Equals Win" or "Client Platform Equals Mac". This is because the Console does not display an endpoint platform with a value appended to "Win" or "Mac" (e.g. "Win32", or "MacIntel"), it displays only "Win" or "Mac". So a filter defined with any value appended to "Win" or "Mac" such as "Win32" or "MacIntel" would not return anything. The same logic applies to other "Endpoint Platform" filter operators (Does Not Equal, Contains, Does Not Contain, Begins With, Does Not Begin With, Ends With, Does Not End With.)

For example: If you have an existing filter tag which says “Endpoint Platform Begins With Win64”, after you upgrade from Console version 8 to version 9, the filter will change to “Endpoint Platform Begins With Win".

Restricted endpoints and tags.

If a user does not have permission to a tag or tags, then that is considered a restriction. Spirion Console uses Roles Based Access Control (RBAC) to authorize users to various Console functions. The permissions to perform certain operations or view certain tags and endpoints are assigned to a role. Users are assigned roles and through those role assignments the users acquire permissions for their Console activities.

If a user is restricted from certain endpoints and that user then creates an IP tag for a range of IP’s, then the restricted endpoint will not be included in the search results, even if it falls within the IP range.

The same is true for Filter tags. If a user creates a filter tag by Endpoint name, and the restricted endpoint matches the filter for that tag, then search results for the restricted endpoint will not be included.

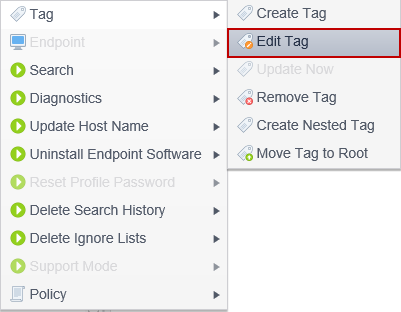

Edit Tag

The Edit Tag dialog allows you to change the name of the tag as well as its type. If the type of a tag is changed, all of the endpoints assigned to that tag will be removed from the tag and all nested tags will be deleted.

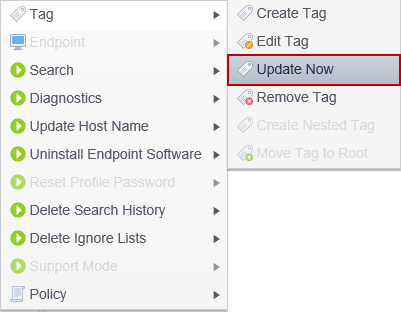

Update Now

The Update Now option applies only to Dynamic and Filter tags. Because endpoints in Dynamic and Filter tags are automatically included or excluded based on the specified criteria, selecting Update Now ensures that you see the current list of endpoints tied to the tag. By default, the list of endpoints is updated hourly by the "Synchronize Tags" Service Task.

Below is a list of other ways that Filter and Dynamic tags get updated:

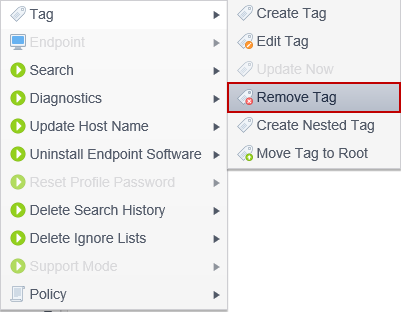

Remove Tag

The Remove Tag confirmation dialog prompts you to ensure that you would like to delete the selected tag and all of its nested tags. Tag removal is a permanent operation and cannot be undone.

Create Nested Tag

The Create Nested Tag dialog allows you to create a new tag under the selected tag. The options are exactly the same as for a new tag. Tags can also be created at any level and moved later via drag and drop.

A nested tag is a grouping of tags and provides a way to further organize Endpoints. Your environment may have hundreds or thousands of endpoints and you may want to group all of these endpoints under one main tag and then further divide the endpoints under nested tags.

For example, you could create a tag called West Region and under that tag you could create two additional tags, which would be the nested tags. One called Finance Department containing all of the endpoints in the Finance department and one called HR Department containing all of the endpoints in the HR Department. This way you can see results for the entire West Region and individually for each department.

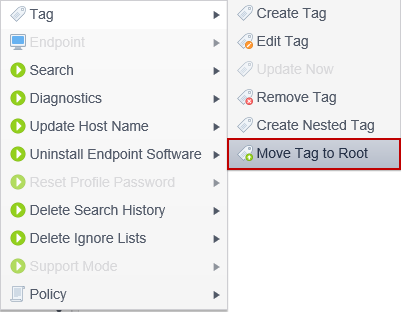

Move Tag to Root

The Move Tag to Root confirmation dialog prompts you to ensure that you would like to move the selected tag to the top level of the Endpoint List. Tags can be moved at any time via drag and drop.

Endpoint Menu

An endpoint is any system or other logical location that can be searched. The most common endpoints are Windows and Mac computers with the Spirion endpoint software installed. Additionally, any remote machine, website, or storage device that is searched will also appear as an endpoint. Finally, with an Active Directory or LDAP tag, any object returned where "objectClass=computer" will appear as an endpoint regardless of whether or not it has been searched. An endpoint can exist in any number of tags.

The Endpoint right-click menu allows you to edit or remove endpoints, add and remove endpoints from tags, move endpoints from one tag to another, merge multiple endpoints into a single endpoint, and create a Purge Logs and Purge Results Service job.

The Console Administrator Tool (CAT) can be used for assigning Endpoints to an existing tag via the importation of a CSV file containing Endpoints, MAC addresses or IP addresses. Please see the CAT documentation for further details.

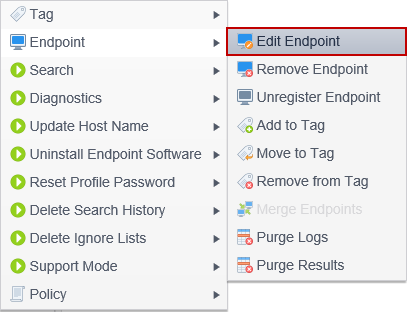

Edit Endpoint

The Edit Endpoint dialog allows you to edit the name of the endpoint as well as the list of associated IP addresses and MAC addresses. IP and MAC address information is reported to the Console during the initial registration process for an endpoint. If the endpoint was searched remotely, these values will likely be blank.

An endpoint's name is stored for display purposes in the Console UI as well as for internal usage. If it is necessary to change the endpoint's name, in most cases, you will only want to modify the display name by leaving the Rename Only the Display Name checkbox checked. The display name is used in the Endpoint List and for filtering, reporting, and everywhere that an endpoint name appears in the UI. The host name changes the identity of the endpoint and is used during the data import process. If both names are changed (the checkbox is cleared) and the Automatically update endpoint names setting is enabled, the display name will revert to the host name and overwrite your change. The host name can be viewed on the Status tab as part of the endpoint Details.

You might use an endpoint name to refer to a computer located in a specific location and as such that particular computer may be replaced or moved to a different network at some point. When it is, the IP address and/or the MAC address can change along with it. In this case you may want to keep the endpoint name the same but you would then need to update the IP and/or the MAC address that the Console associates with it.

Optionally enter an Endpoint Owner E-mail Address that can be used when sending Workflow notifications.

You may optionally specify Endpoint Owners which can be used when assigning results manually or via Workflows. Rather than manually entering the Endpoint Owners and E-mail addresses, you can import them via the CAT. For detailed information, please refer to Import CSV for Emails and Owners in the CAT. When a user synced from AD has been disabled, it will be displayed here in a gray italic font.

To add an IP address or MAC address to the endpoint, enter the address in the IP Addresses field or MAC Addresses field, respectively, and click on the green circular button with the plus in the middle. The new address will then appear in the list of addresses. Click OK when you are finished with all changes.

While IP and MAC addresses are automatically updated during GUID registration and when the endpoint sends search results to the Console, you may wish to manually add them so that offline endpoints appear in reports.

To remove an IP address or MAC address, highlight the desired address(es), click Remove Selected and click OK.

If there is an IP or MAC address that is no longer associated with an endpoint, perhaps because the network card has been remvoed or the IP has changed, you may manually remove it.

If you remove a valid IP or MAC address from the list of addresses, it will reappear in the list the next time the Endpoint sends search results to the Console.

To set an IP address or MAC address as the default address , highlight the desired address and click Make Default and click OK. The default address will appear in bold.

An endpoint can have multiple IP and MAC addresses as a result of having been merged or if the endpoint has multiple network adapters. When using DHCP, a new IP address will automatically be added to the endpoint. All of the IP addresses will be listed when editing the Endpoint, but only one can be the default.

The IP address marked as default will be used in Reporting when the Endpoints->IP Address column is used. The MAC address marked as default will be used in Reporting when the Endpoints->MAC Address column is used.

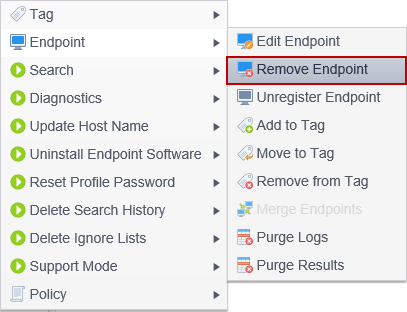

Remove Endpoints

Remove Endpoints allows you to permanently delete an endpoint from the Console

The Remove Endpoints confirmation dialog prompts you to ensure that you would like to remove the selected endpoint(s). You can select multiple endpoints by holding the CTRL key while clicking on endpoints. If the endpoint(s) currently have information associated with them, such as search results, the prompt will display, "The selected endpoint(s) contains data. Remove anyway?" to alert you to this fact.

Rather than removing that data at the time of the request, the Console schedules the removal for a later time. The removal will be created as a Service Task of type "Remove Endpoints" and will be automatically removed after successfully executing.

When an endpoint is in an AD tag and that system is removed from the AD or it is in an IP Address tag and its IP address is changed to no longer match the tag specifications, it will be automatically removed from the tag. The endpoint will continue to exist in the All Endpoints tag.

Once the Remove Endpoints service task has successfully executed, it will be necessary to manually refresh the endpoint list to reflect any changes since the last logon or refresh.

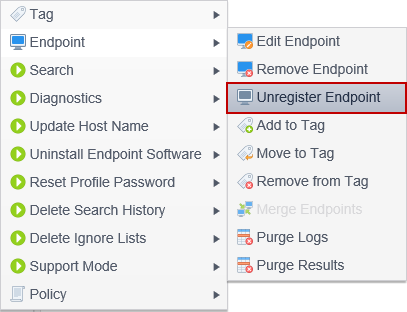

Unregister Endpoints

Unregister Endpoints allows you to remove all registration information for an endpoint.

When you unregister an endpoint, certain information (Endpoint Version, Platform, Platform Type, Policies State, Last Poll and Guid) for that endpoint will be removed from the Endpoint Status Detail tab and the endpoint icon will change to blank. The endpoint and any existing results for that endpoint will not be removed from the Console. The next time that the endpoint polls the Console, the endpoint will re-register and a new endpoint may be created depending upon the Automatically merge endpoints based on setting. You can select multiple endpoints by holding the CTRL key while clicking on endpoints. Note: Users must have the Edit or Remove Endpoint General Permission in order to unregister an endpoint.

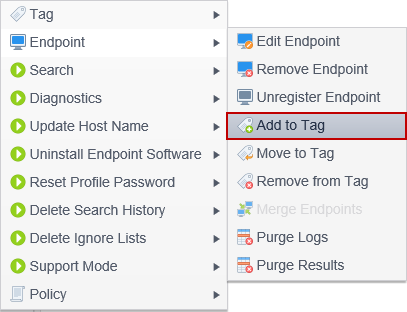

Add to Tag

Add to Tag allows you to add the selected endpoint(s) to any existing tag.

The Select Tags dialog displays all of the tags and nested tags available in which the endpoint(s) can be placed. An endpoint can exist in any number of tags and this operation will not remove the endpoint from any existing tags. If the endpoint already exists in the destination tag, this operation will have no effect. You can select multiple endpoints by holding the CTRL key while clicking on endpoints.

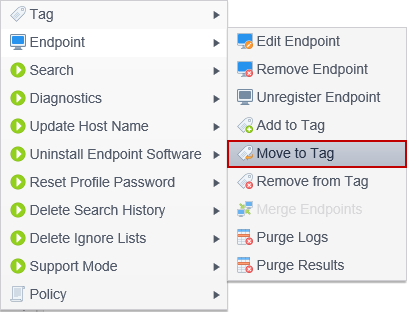

Move to Tag

Move to Tag allows you to move endpoint(s) from one Simple tag to another.

You can move selected endpoint(s) from any existing Simple tag to one or more existing Simple tag(s). (IP, AD and Filter tag endpoints cannot be moved this way as they are all dynamic.) Once moved, the endpoint will no longer exist on the tag from which it was just moved. If the endpoint already exists on the destination tag, this operation will have no effect.

To move an endpoint, click the arrow to the left of a tag or double-click on a tag to show the endpoints associated with that tag. Select the endpoint to move by clicking on it. You can select multiple endpoints by holding the CTRL key while clicking on endpoints. Right click on the Endpoint, select Endpoint and select Move to Tag.

The Select Tags dialog displays all of the tags and nested tags available in which the endpoint(s) can be placed. An endpoint can exist in any number of tags and this operation will not remove the endpoint from any existing tags. If the endpoint already exists in the destination tag, this operation will have no effect. You can select multiple endpoints by holding the CTRL key while clicking on endpoints.

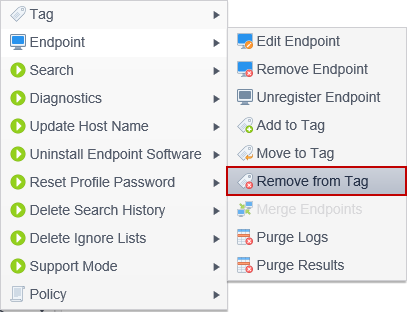

Remove from Tag

The Remove from Tag confirmation dialog prompts you to ensure that you would like to remove the specified number of endpoints from the specified tag(s). You can select multiple endpoints by holding the CTRL key while clicking on endpoints. The count is provided in the confirmation in the form, "Remove 3 endpoint(s) from the tag(s)?"

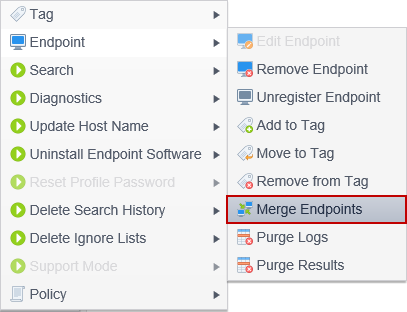

Merge Endpoints

The Merge Endpoints dialog allows you to move all of the data from one or more endpoints to a selected endpoint and deletes all of the endpoints other than the selected endpoint. You can select multiple endpoints by holding the CTRL key while clicking on endpoints. The dialog reads, "Select the endpoint all other endpoints will merge into. Other endpoints will be removed."

Endpoints can also be merged automatically. The Endpoints Merging Service Job will merge endpoints based on the criteria set in the "Automatically merge endpoints based on" section of the Application Settings page. See Application Settings and Service Jobs for information on automatic merging of endpoints.



Endpoints are generally merged to consolidate results from a single endpoint that have been reported as multiple endpoints. For example, If the Spirion endpoint software is installed on SYSTEM1 and then that system is later re-imaged with the same name - when it attempts to register as SYSTEM1, the Console may note that there is already a SYSTEM1 and assign this endpoint the name SYSTEM1_<GUID> (where GUID is a unique number assigned to each endpoint). If this happens, it would be desirable to merge the original results into the SYSTEM1_<GUID> endpoint (the selected endpoint and the one that now exists) which will delete SYSTEM1 and then you can rename SYSTEM1_<GUID> to SYSTEM1.

In the dialog, it is important that the endpoint that is currently reporting results is specified as the Selected endpoint (and not to choose the endpoint whose Name you want to use).

Note: It is possible to prevent the scenario described above from occurring by configuring the Console to Automatically merge endpoints based on hostname.

Purge Logs

The Purge Logs operation allows you to create a Service Task which will delete log data from the selected tag(s) or endpoint(s). When the task executes, the specified log(s) will be purged.

For more detailed information about Purge Logs, please refer to the Purge Logs article. For information about Service Jobs, please refer to the Service Jobs article.

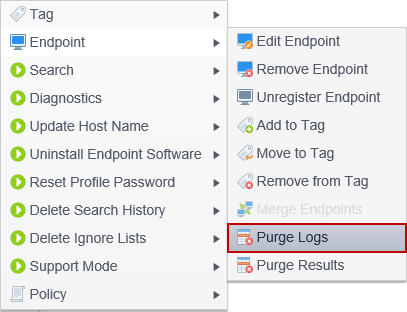

To create a Purge Logs Service Job, click on the Purge Logs selection.

The Purge Logs confirmation dialog confirms that the task was created successfully.

Endpoint logging provides detailed information and it is recommended that logs only be sent to the Console during testing, troubleshooting or initial configuration. By default, endpoints do not send log information to the Console and to do so, this option must first be enabled in a policy. Because the logs are available on the endpoints themselves, it is generally not necessary to have the information in the Console database. Endpoint logs can produce a lot of entries, especially if logging for Locations Searched is enabled, and the database can fill very quickly and degrade performance. For this reason, when collecting logs on the Console, you may want to periodically delete the logs.

Purge Results

The Purge Results operation allows you to create a Purge Results Service Task which will purge results data from the selected tag(s) or endpoint(s). When the task executes, the specified results will be purged.

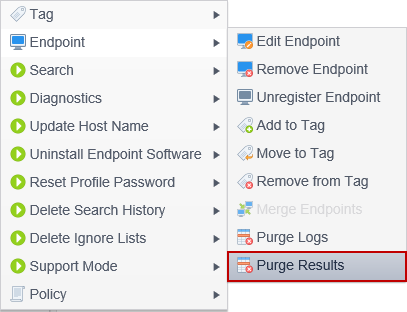

To create a Purge Results Service Job, click on the Purge Results selection.

The Purge Results confirmation dialog confirms that the task was created successfully.

The Purge Results Service Job is responsible for deleting results data. It may be desirable to clear out search results on a periodic basis if that data is not needed for reports or analysis.

You can also schedule a Purge Results service job to delete data that matches specific criteria. For detailed information about Purge Results, please refer to the Purge Results article.

For information about Service Jobs, please refer to the Service Jobs article.

Search Menu

There are two methods to initiate a search on a managed endpoint. You can create a scheduled task within a policy or you can directly initiate a search on a tag, endpoint, or multiple endpoints via the Search right-click menu item (or ribbon button).

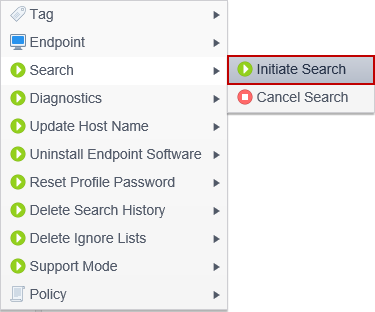

Initiate Search

When initiating a search via the Search right click menu, the Console will automatically create a policy with a task scheduled to execute immediately after the endpoint applies the policy. The endpoint will not start the search until it successfully downloads and applies the policy.

After selecting Initiate Search, the Search Now dialog is displayed.

Within this dialog, you can specify the following information:

The status of the task can be viewed on the Status tab.

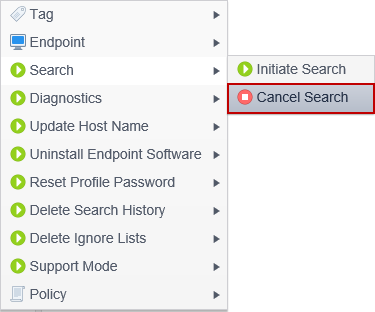

Cancel Search

Cancel Search will not stop a search that is currently running. Cancel Search will remove any pending searches created by using the Initiate Search option. If the endpoint has already downloaded a policy that included the request to perform a search, you cannot cancel the search from the Console. Canceling a search that was initiated on a policy will also cancel a search that was initiated on an endpoint. Likewise, canceling a search that was initiated on an endpoint will also cancel a search that was initiated on a policy.

Diagnostics Menu

Under certain circumstances, it is necessary for the support team to have additional information about the endpoint and/or Console configuration before providing a diagnosis for an issue. The Diagnostics menu item will automatically collect the necessary diagnostic information and create a compressed zip file to attach to a support ticket.

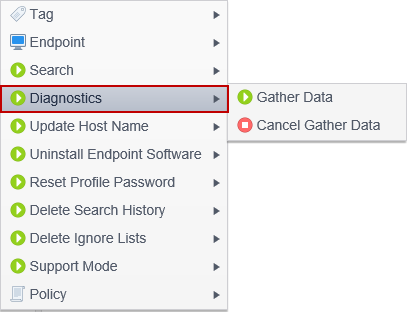

Gather Data

When initiating a Gather Data via the Diagnostics right click menu, the Console will automatically create a task scheduled to execute immediately after the endpoint polls the Console. The endpoint will not start the gather data until it successfully downloads and applies the task. The Gather Data dialog has the following options:

To retrieve the diagnostic data, run a Gather Data from the Console Administrator Tool (CAT).

You may also retrieve selected diagnostic data from the Uploads tab of the Endpoint Status Detail.

Cancel Gather Data

Cancel Gather Data will not stop a gather data that is currently running. Cancel Gather Data will remove any pending gather data tasks created by using the Gather Data option.



Update Host Name Menu

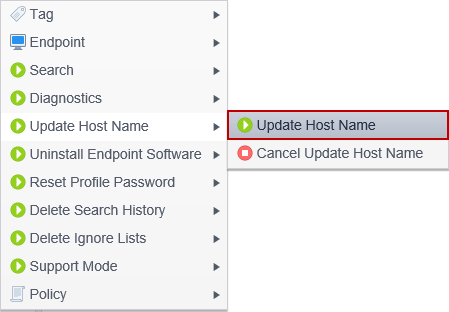

To update the Console to reflect a change that has been made to the endpoint host name select Update Host Name. The host name can be viewed on the Status tab as part of the endpoint Details. If the Automatically update endpoint names option is enabled, then this will not be necessary.

Update Host Name

If an endpoint computer's name changes, selecting Update Host Name will update the endpoint host name.

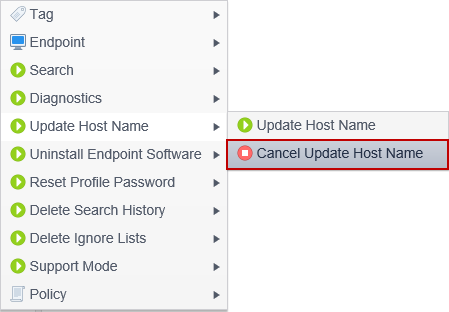

Cancel Update Host Name

Cancel Update Host Name will cancel the Update Host Name request provided it has not yet been received by the endpoint.



Uninstall Endpoint Software Menu

You can remotely uninstall the endpoint software from an endpoint via the Uninstall Endpoint Software right-click menu item. When right-clicking on an endpoint, this option will only be enabled for an endpoint that is running client version 10.0 or higher. When right-clicking on a tag and selecting Uninstall Endpoint Software, the uninstall task will be created for any endpoints within the tag that are running endpoint version 10.0 or higher. Endpoints within the tag running endpoint versions less than 10.0, will not have the uninstall task created. The following setting must be configured in a policy applied to the endpoint for this feature to work: Console\AllowAutomaticClientUpdates

N

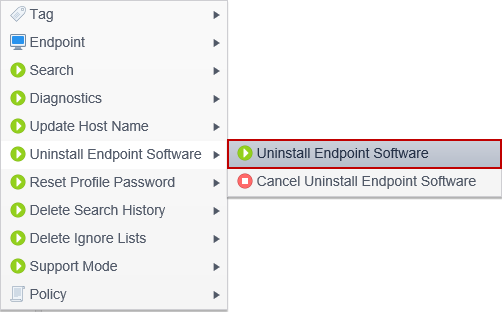

Uninstall Endpoint Software

When initiating an uninstall via the Uninstall Endpoint Software right click menu, the Console will automatically create a task scheduled to execute immediately after the endpoint polls the Console. The endpoint will not start the uninstall until it successfully downloads and applies the task. The status of this task can be viewed on the Endpoint Status Detail Tasks tab.

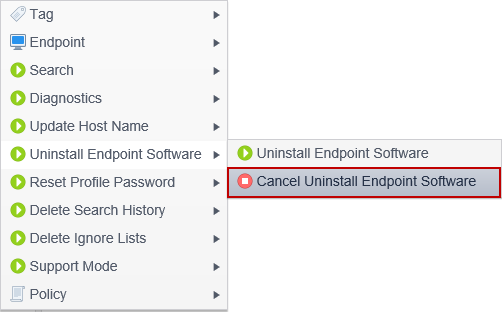

Cancel Uninstall Endpoint Software

The Cancel Uninstall Endpoint Software menu option will not stop an uninstall that is currently executing. Cancel Uninstall Endpoint Software will remove any pending uninstall tasks that were created by using the Uninstall Endpoint Software option.



Reset Profile Password Menu

You can remotely reset the profile password for an endpoint to a temporary password via the Reset Profile Password right-click menu item. When right-clicking on an endpoint, this option will only be enabled for an endpoint that is running endpoint version 9.0 or higher. Note: After upgrading the endpoint to version 9.0 or higher, the user must first change their password on the endpoint in order to be able to reset it from the Console with the Reset Profile Password menu option.

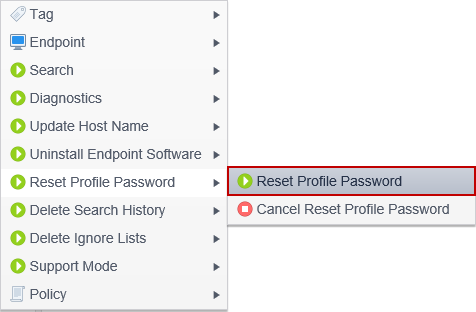

Reset Profile Password

When initiating a reset of the profile password via the Reset Profile Password right click menu, the Console will automatically create a task scheduled to execute immediately after the endpoint polls the Console. The endpoint will not reset the password until it successfully downloads and applies the task. The status of this task can be viewed on the Endpoint Status Detail Tasks tab. Once the task has been executed on the endpoint, the next time a user logs into the application they will be prompted to enter the temporary password along with entering and confirming a new password in order to continue.

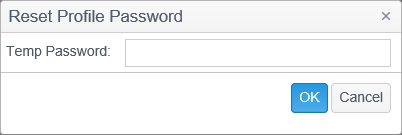

After selecting Reset Profile Password, you will be prompted with the Reset Profile Password dialog where you can enter the new password.

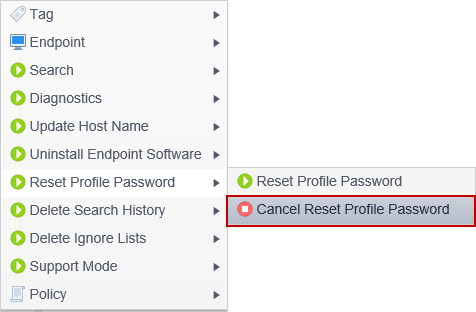

Cancel Reset Profile Password

The Cancel Reset Profile Password menu option will not stop a reset of a profile password that is currently executing. Cancel Reset Profile Password will remove any pending reset profile tasks that were created by using the Reset Profile Password option.

Delete Search History Menu

The Delete Search History menu option will delete both the file and e-mail search history databases.

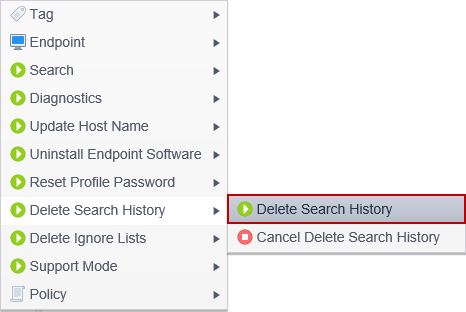

When initiating a Delete Search History via the Delete Search History right click menu, the Console will automatically create a scheduled task to execute immediately after the endpoint polls the Console. The endpoint will not start the search history deletion until it successfully downloads and applies the task. Delete Search History has the following options.

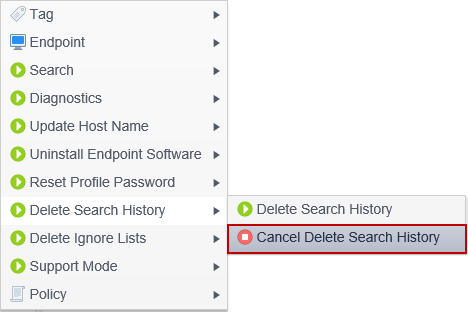

The Cancel Delete Search History will remove any pending delete search history tasks that were created by using the Delete Search History option. The Cancel Delete Search History menu option will not stop the deletion of search history that is currently executing.

Delete Ignore Lists

You can remotely delete the local user ignore lists on an endpoint via the Delete Ignore Lists right-click menu option. When right-clicking on an endpoint, this option will only be enabled for an endpoint that is running client version 10.1 or higher. When right-clicking on a tag and selecting Delete Ignore Lists, the Delete Ignore Lists task will be created for any endpoints within the tag that are running endpoint version 10.1 or higher. Endpoints within the tag running endpoint versions less than 10.1, will not have the Delete Ignore Lists task created. Users must have the Delete Endpoint Ignore Lists General Permission in order to delete ignore lists.

Delete Ignore lists

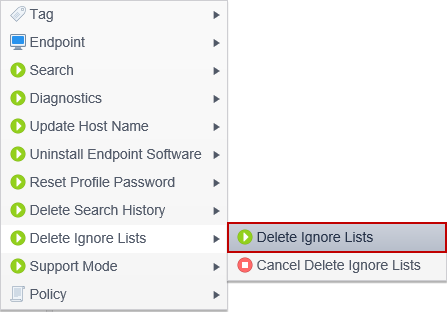

To delete an endpoint's local ignore lists select the Delete Ignore Lists right-click menu option.

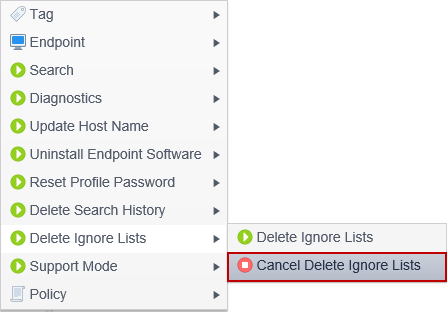

Cancel Delete Ignore Lists

The Cancel Delete Ignore Lists right-click menu option will cancel the Delete Ignore Lists task provided it has not yet been received by the endpoint.

Support Mode

Under certain circumstances, the Spirion Support team may direct you to enable support mode, which provides additional debug logging information that can be used to diagnose and troubleshoot an issue. Support mode requires a specific xml configuration file which the support team will provide. Users must be assigned to an administrator role or have the Enable Support Mode General Permission in order to enable support mode.

Enable Support Mode

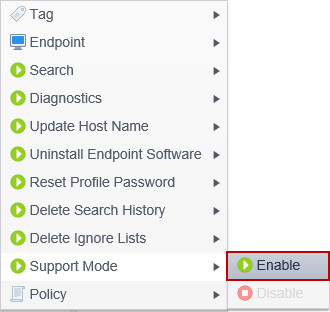

To enable Support mode for an endpoint, select the Enable right-click menu option.

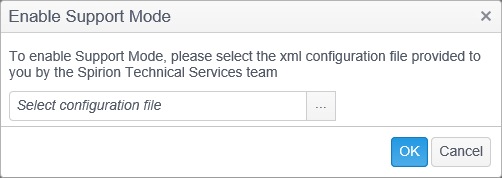

When the Enable Support Mode dialog displays, select the xml configuration file that was provided to you by the support team.

A Support Mode task will be created in the Endpoint Status Details Tasks tab and the following icon will display next to the endpoint in the endpoints list:

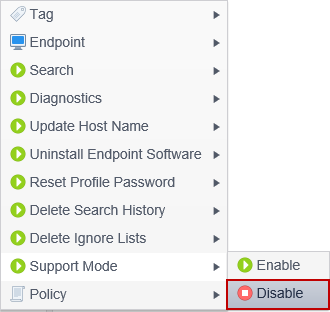

Disable Support Mode

To disable Support Mode, use the Disable right-click menu option.

Policy Menu

An endpoint will apply a policy only when there are changes to the policies that are associated to the endpoint. If the policy on the endpoint is deleted or modified, the Console server will not be aware of the local modification and therefore will not send a policy update to the endpoint.

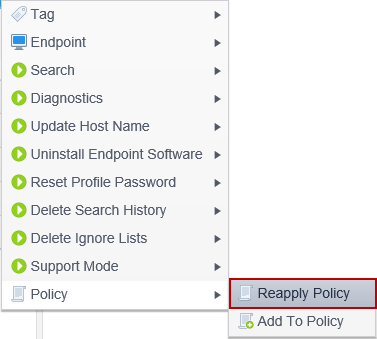

Reapply Policy

The Reapply Policy menu item will force the Console to update the policy for the endpoint. The endpoint will then download this policy at its next polling interval.

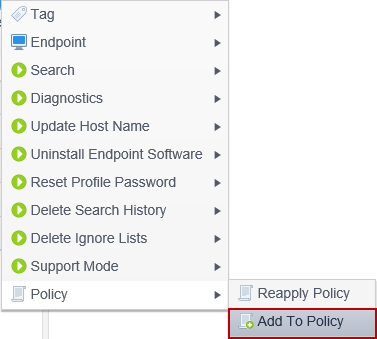

Add To Policy

The Add To Policy menu item allows you to add the selected tag or endpoint to an existing policy. When you click on Add To Policy the Select Policy dialog opens and you can choose from one of the existing policies. If you add a tag to a policy then all endpoints in that tag will be added to the policy.
